207B

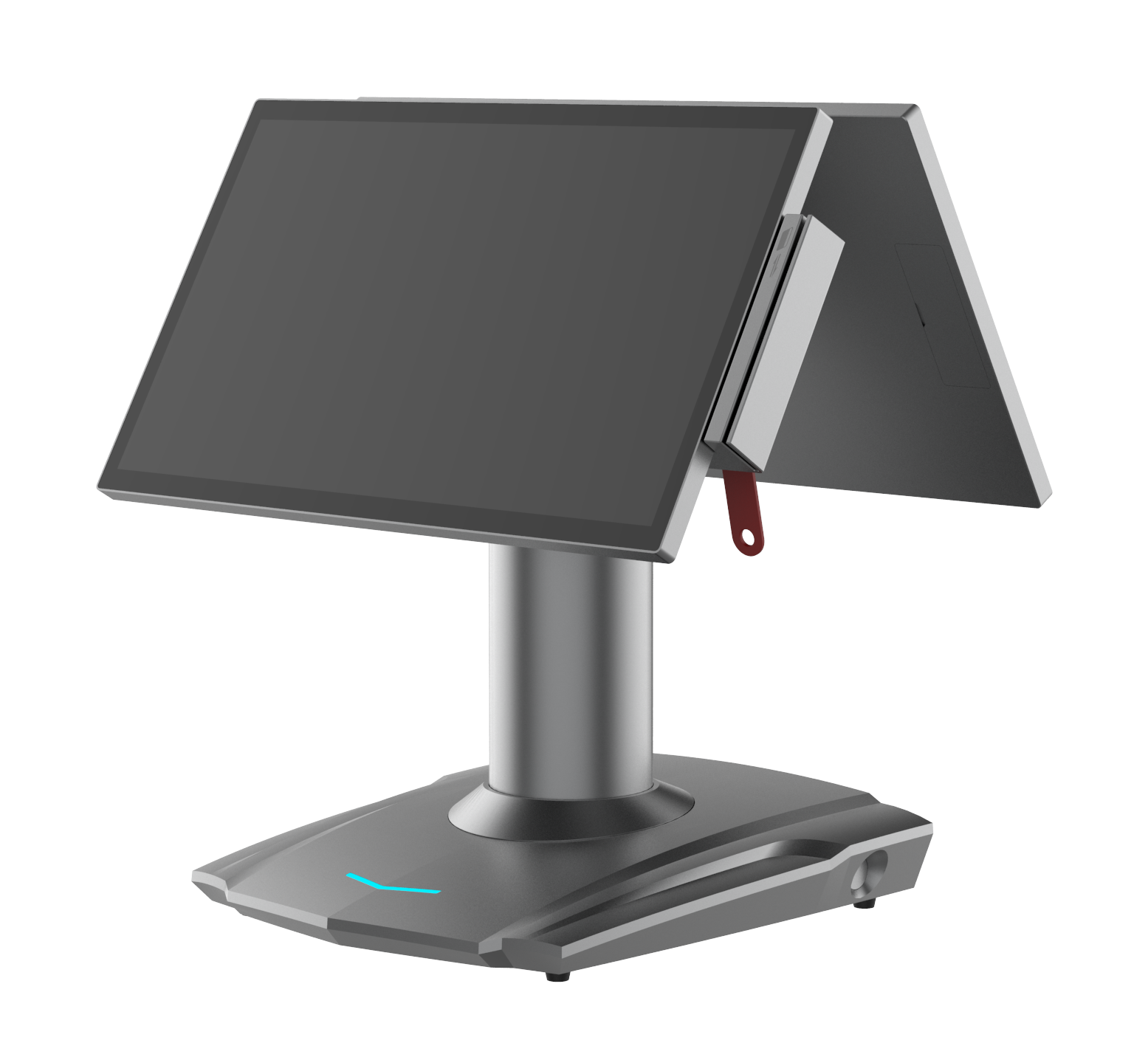

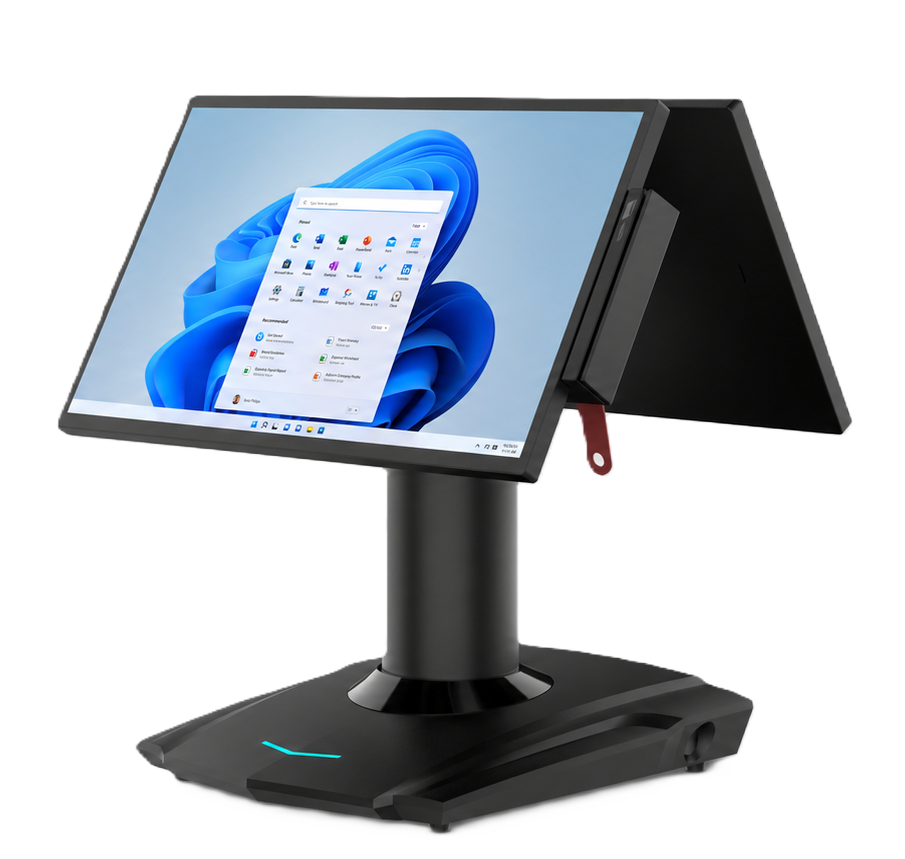

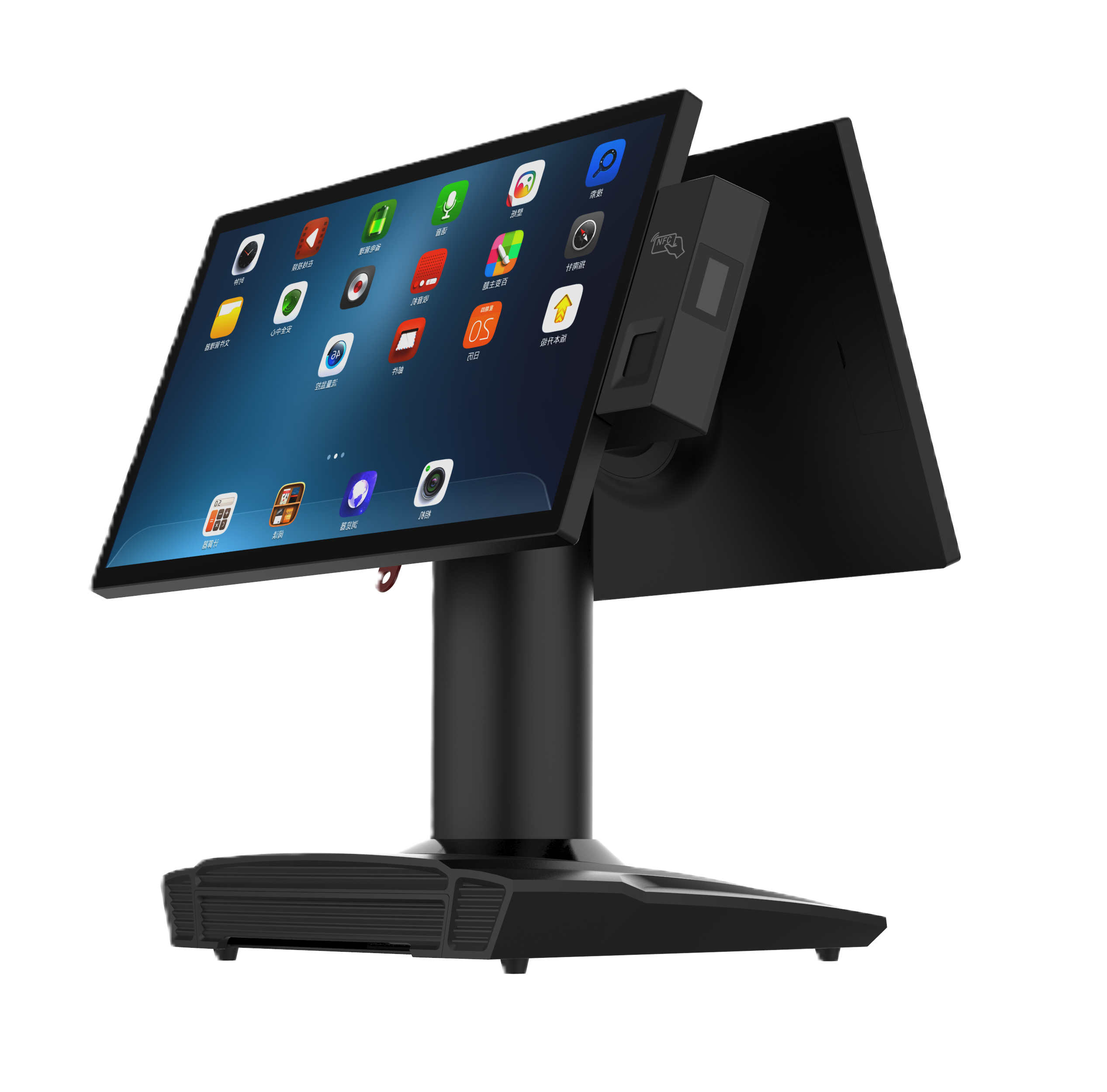

Ultra Slim Wide Screen Point of Sale System
.png)
Die-casted Fan-less Aluminium Chassis

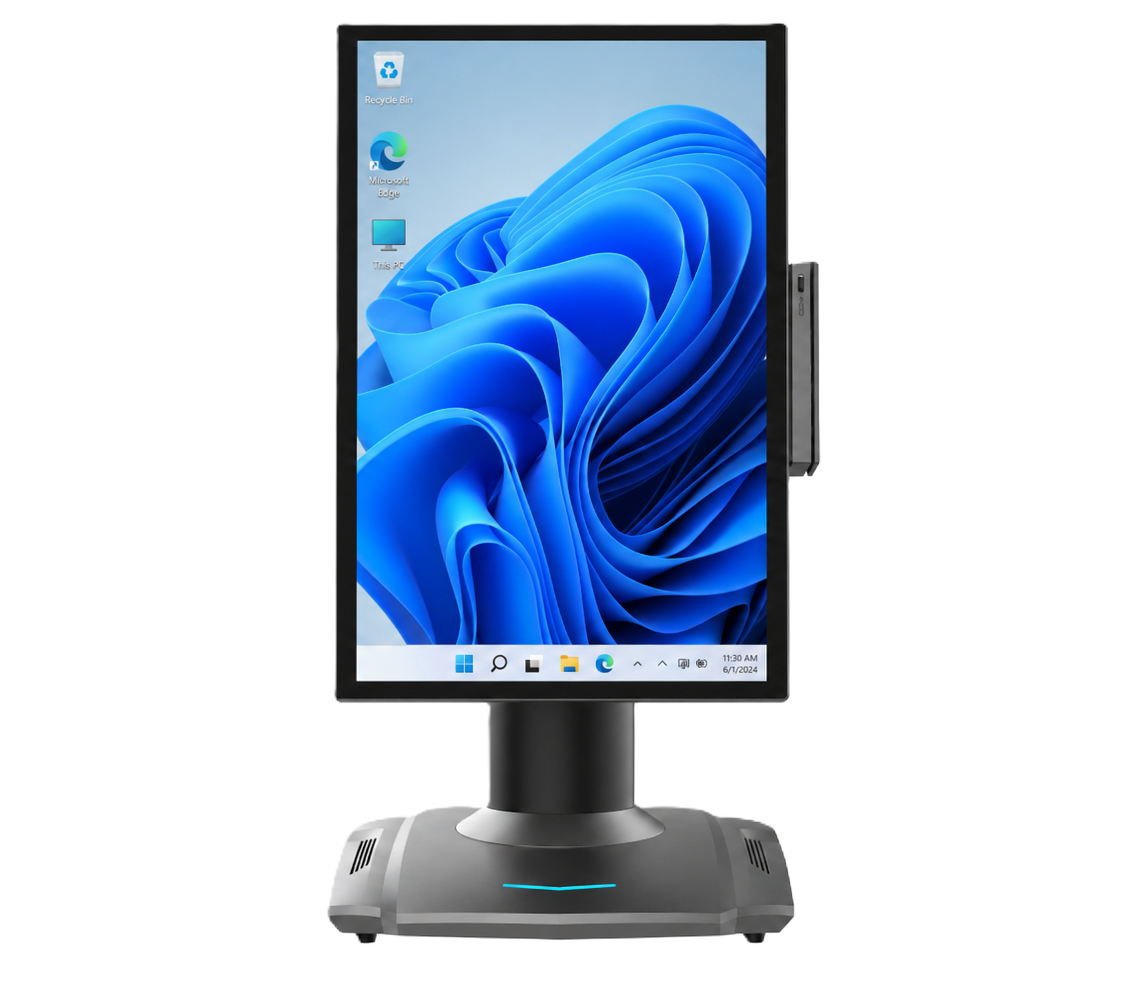

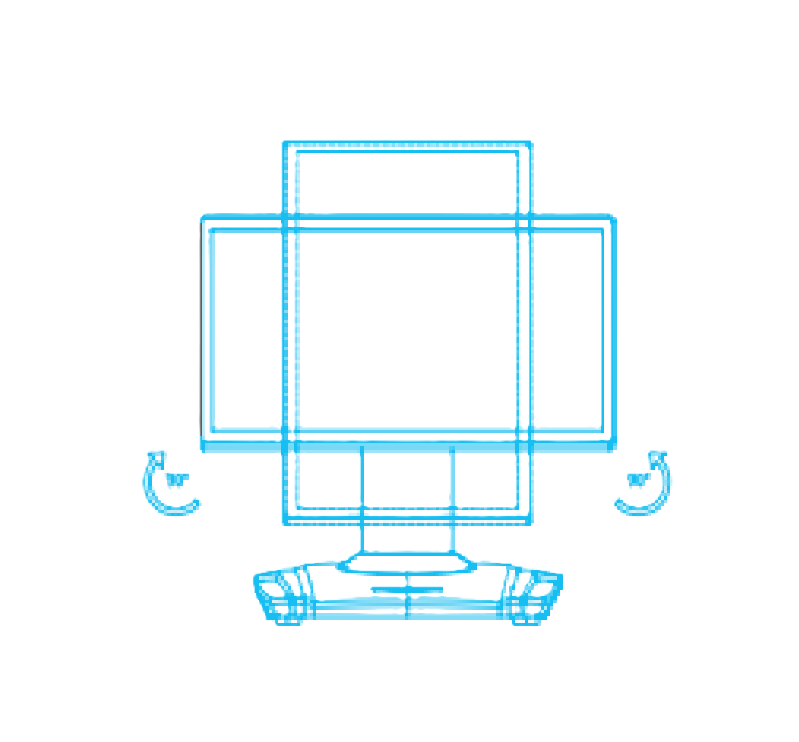

Comprehensive Screen Mobility - Tilt, Rotate & Side movement

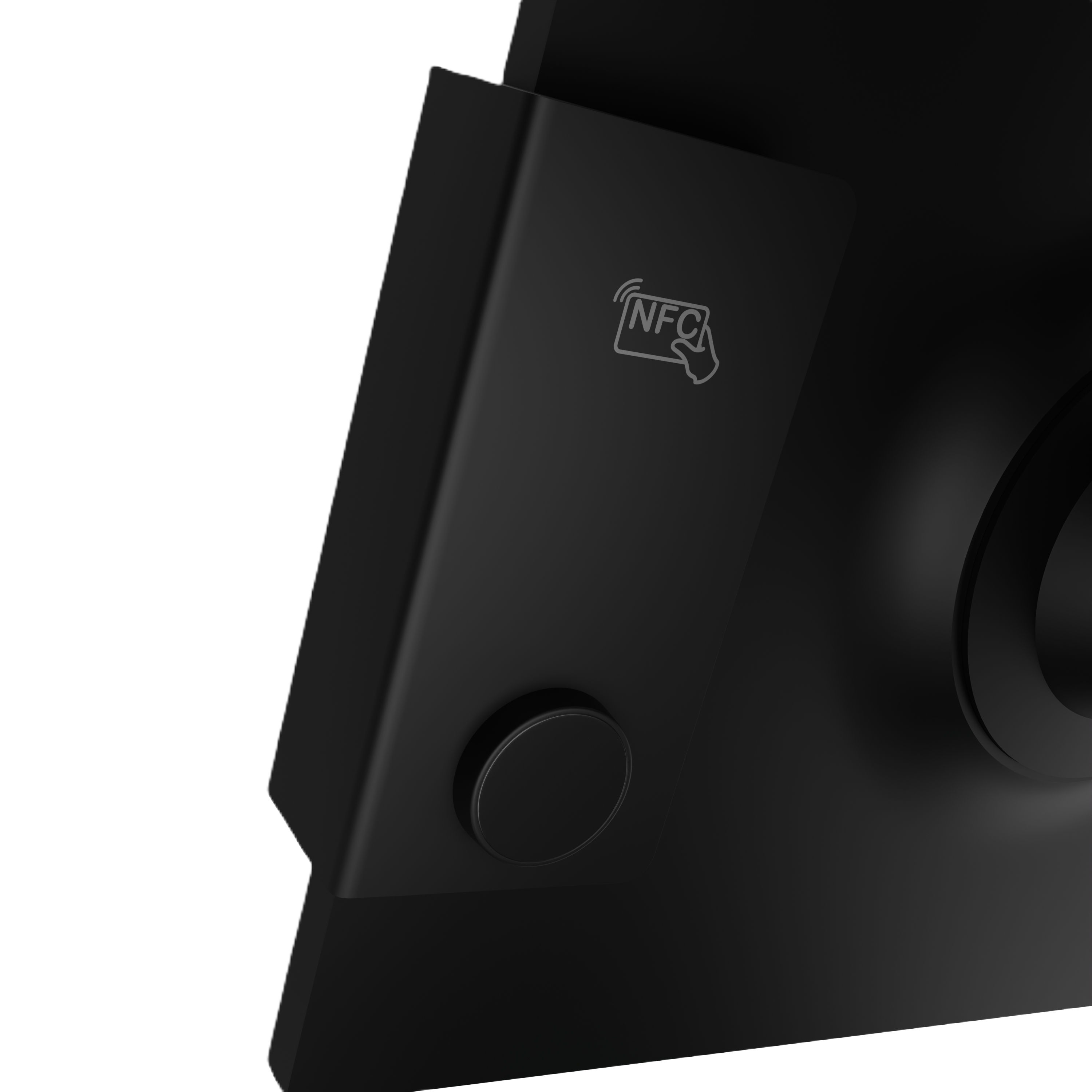

Gold Finger PCBA for Card Reader

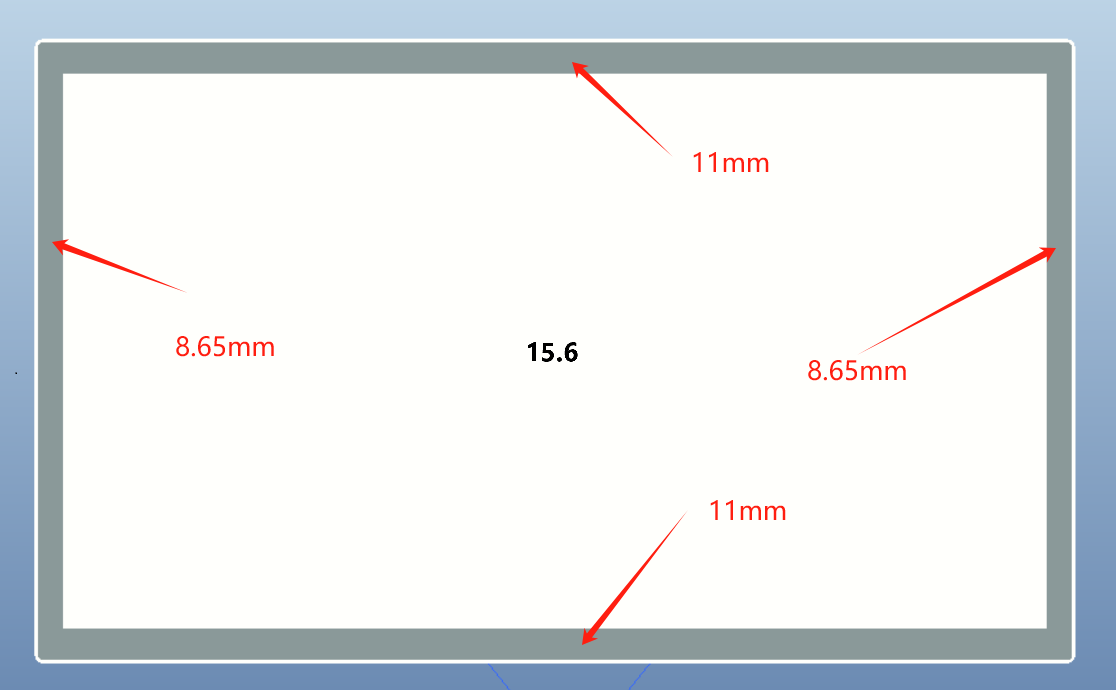

| Screen | Screen Size | 15.6", FHD, 350nits | 15.6", FHD, 350nits | |
| Interface | LVDs, EDP, LVDs | LVDs, EDP, LVDs | ||
| Resolution | 1920*1080 IPS FHD Display | 1920*1080 IPS FHD Display | ||
| Brightness | 350nits | 350nits | ||
| Configuration | CPU | N97, N100, N305, I3-1215, I5-1235 - 12th Gen CPU (Opt - 13th Gen) | Qualcomm 660 Octcore 64-bit ARM KryoTM 260, processor, Qualcomm AdrenoTM 512 GPU | |
| System Type | Fanless | Fanless | ||
| Ram | 8Gb DDR4-3200Mhz (32Gb Max) | 4 GB LPDDR4X | ||
| EMMC/SSD/HDD | 256Gb M2 NVMe | 64 GB UFS (eMMC) | ||
| Touch screen | Touch Panel | 7H, 10 Points, IP54, PCAP | 7H, 10 Points, IP54, PCAP | |
| OS | Win 10, 11, Linux | Android 12 | ||
| Interfaces | USB | USB 3.0 | 2 | 2 |
| USB | USB 2.0 | 2 | 2 | |
| USB | Type C | 1 | 1 | |
| Cash Drawer | RJ11 | 1 | 1 | |
| LAN | RJ45 | 1 | 1 | |
| RS232 | RJ45 | 2 | 1 | |
| HDMI | Video | 1 | 1 | |
| Audio | Music Output | 1 | 1 | |
| DC-IN | 4Pin | 1 | 1 | |
| DC-Out | Round Pin | 1 | 1 | |
| HUB | Powered USB | 12V | 1 | 1 |
| Powered USB | 24V | 1 | 1 | |
| RS232 | UART | 1 | 1 | |
| USB | 2.0 | 1 | 1 | |
| USB | Type C | 1 | 1 | |
| Power supply | DC-IN | 4Pin | 24V, 4.16A | 12V, 5A |
| Optional | ||||

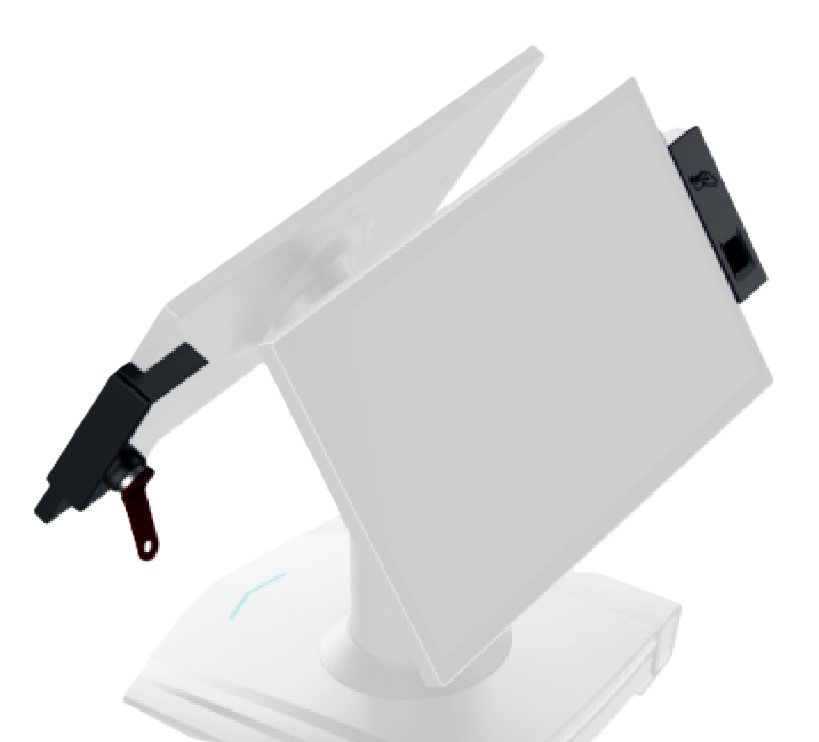

| MSR | MSR, MSR+Ibutton, MSR+RFID | MSR, MSR+Ibutton, MSR+RFID | ||

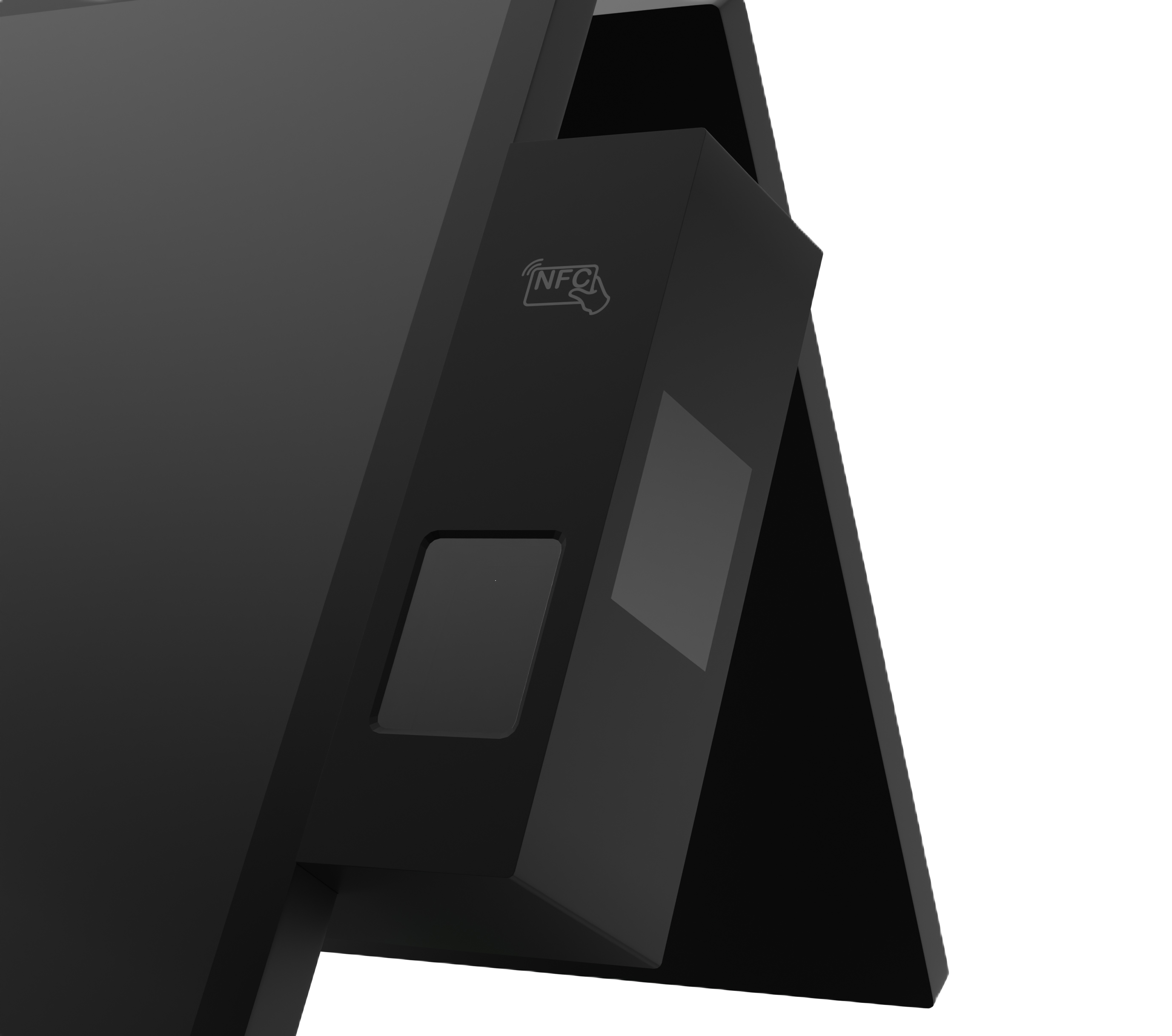

| Multipurpose Card Reader | RFID+Barcode Scanner+Fingerprint Reader | RFID+Barcode Scanner+Fingerprint Reader | ||

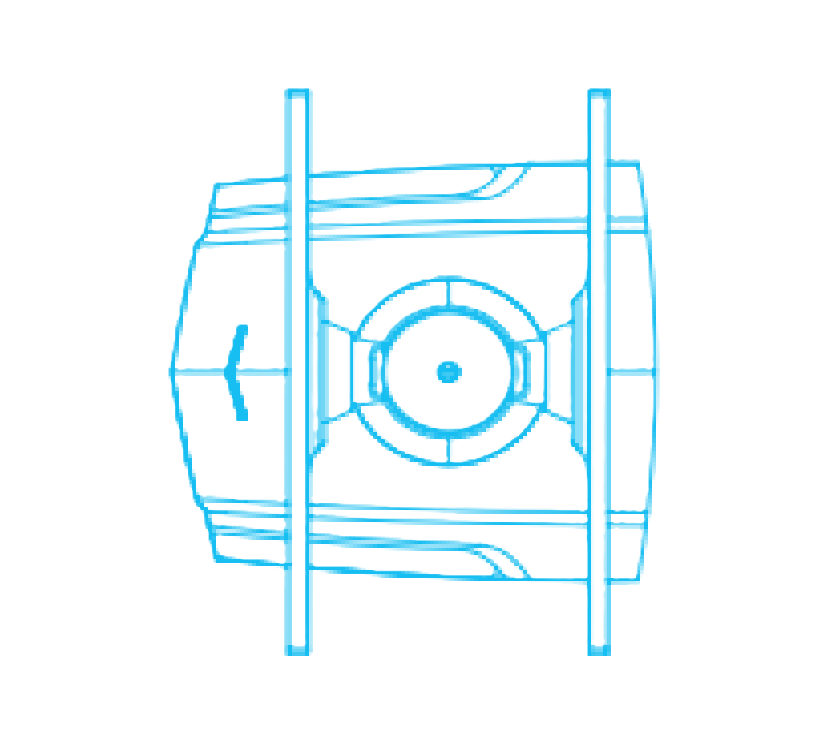

| Second Display | 15", 15.6", 21.5" with or without Touchscreen | 15", 15.6", 21.5" with or without Touchscreen |
