K1008

Processor

Intel® 12^th Gen N95 CPU

Intel® 12^th Gen i3-1215U CPU

Intel® 12^th Gen i5-1235U CPU

RK3572: 2*A73 + 6*A53 CPU

RK3576: 4*A73 + 4*A53 CPU

SDM450: Eight-core 64-bit ARM Cortex-A53 CPU
1.8GHz (MSM8953 frequency 2.0GHz)

Memory

8Gb DDR4 Ram

(Opt 16Gb/32Gb)

4Gb DDR5 Ram

( Opt 8Gb )

4GB LPDDR3

Storage

128Gb M2 SSD (Optional 256Gb)

64Gb Emmc ( Opt 128Gb )

64Gb Emmc (Optional 64Gb)

Operation System

Win 11 OS, Linux

Android 14 / Android 16 (GMS)

Android 11

Screen Size

24" LCD TFT (LED Backlit), 350nits, IP64 Front

Resolution

1080 x 1920

Screen Position

Vertical

Touch Panel

PCAP, Multi-touch

Speaker

2W speaker

WiFi

Wi-Fi 5

Wi-Fi 6

Wi-Fi 5

Bluetooth

5.1

5.1

4.2

Adaptor

DC Power Input

DC Power Input

DC Power Input

Interfaces

USB

4

4

4

Ethernet

1

1

1

RJ11

-

1

1

Audio

1

1

1

HDMI

1

1

1

Network Support

-

Optional

Optional

COM

1

1

1

Environment

Operation Temperature

5~40°C

Storage Temperature

-20°C to +60°C

Operation Humidity

15 to 85% without condensation

Storage Humidity

15 to 85% without condensation

Peripherals

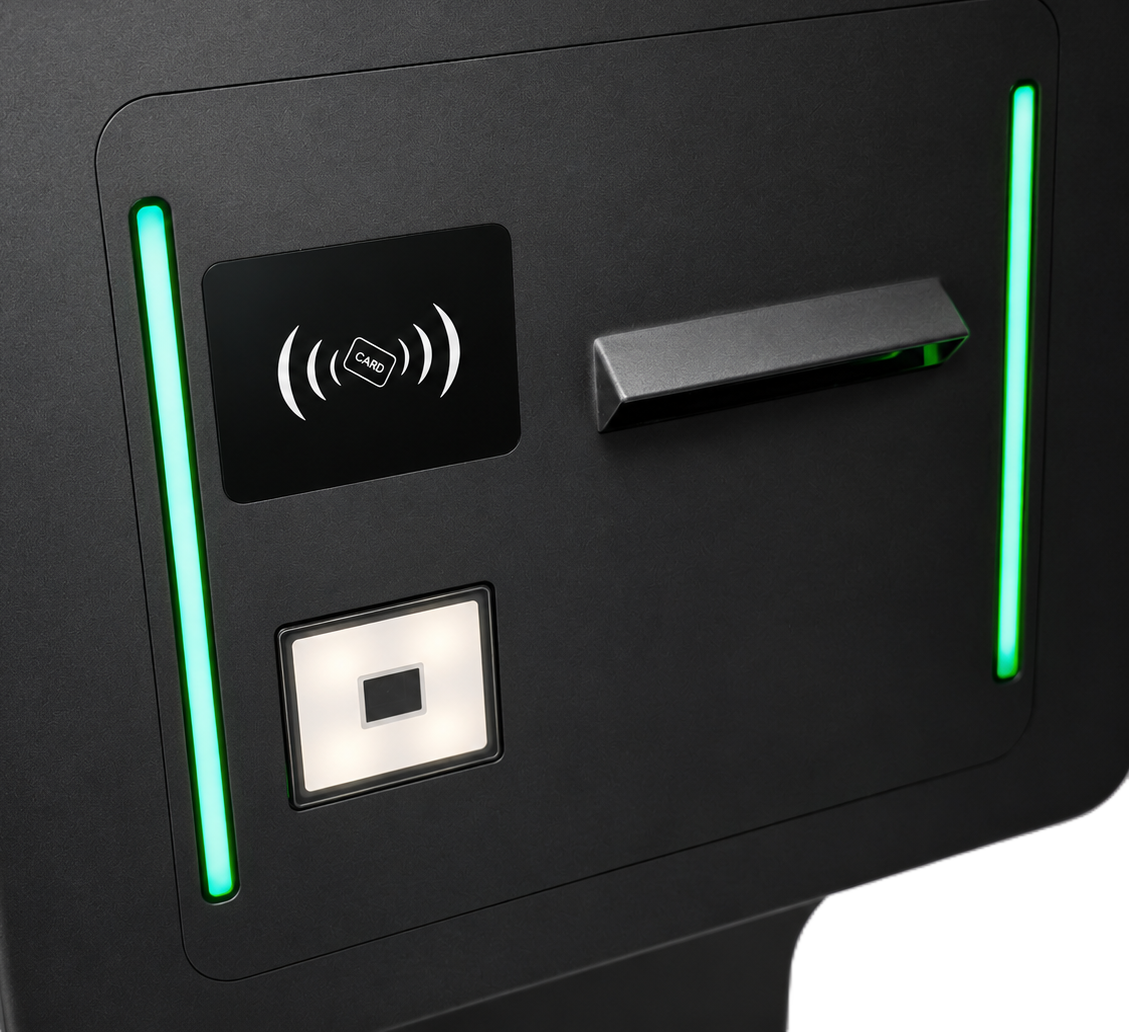

Bar Code Scanner

2D/1D, 640×480，120FPS, Motion Tolerance : 100cm/s, ≥4mil

NFC

Read - Write , IEC 14443 TypeA，IEC 14443 TypeB

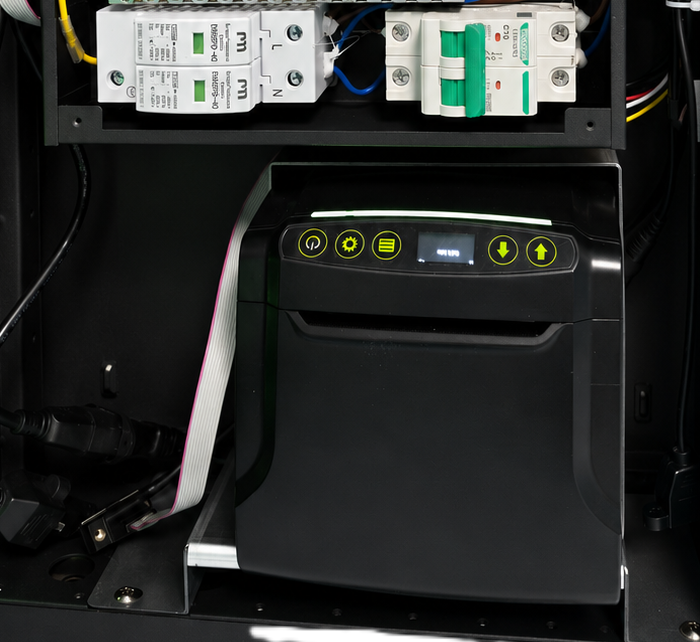

Printer

1080 Thermal POS Printer, USB+LAN+RS232, 300mm/sec, ESC/POS Complaint

POS Holder

Included

Camera

As per customer requirement

LED Light

Green , Dual LED Light

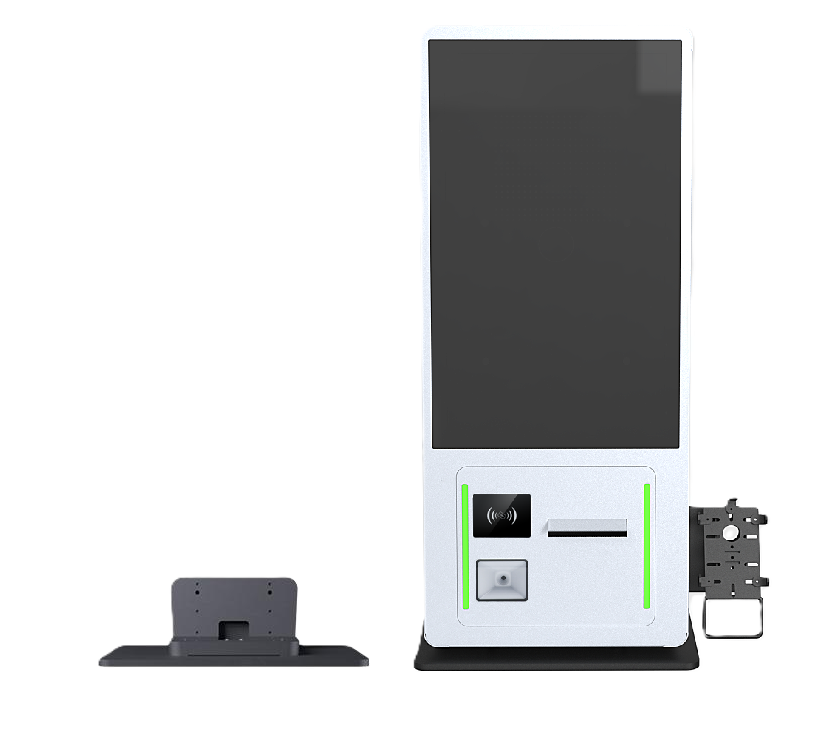

K1008 Table Top Dimensions

Width

369.5mm

Depth

206.4mm

Height

894.39mm

With Base Plate

400mm

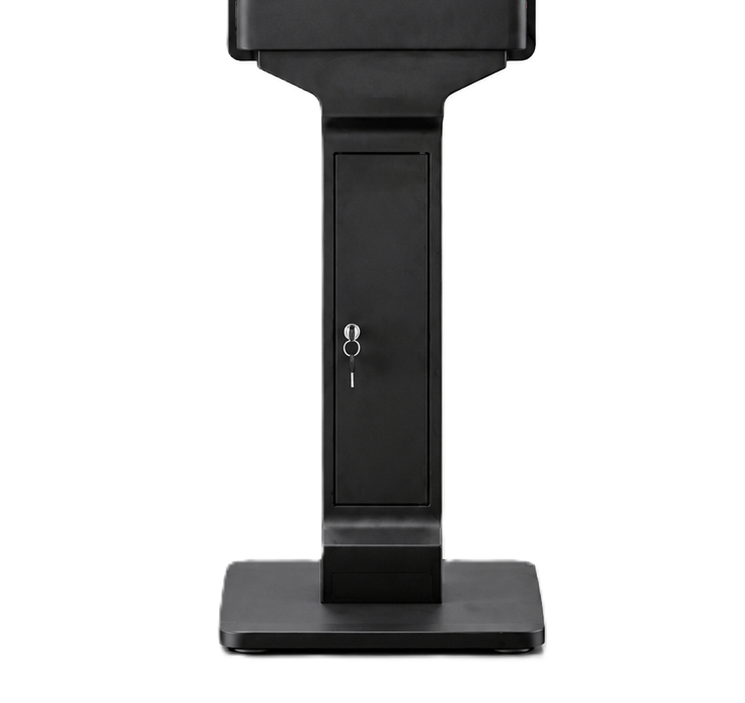

Floor Mount Stand Dimensions

Base Plate

420W x 400D

Stand Width

200mm

Stand Depth

115mm

Stand Height

156.5mm

Overall Kiosk Dimensions

No of units / Box

1pc/box

Box Dimensions

53*75*171cm

Box Weight

44kgs
