Configuration

  • 15.6" HD Display, RK3566 CPU, 4Gb Ram, 32 / 64Gb EMMC, Android 11, GMS, Wi-Fi, Bluetooth (Single Display Support)
  • 15.6" HD Display, RK3568 CPU, 4Gb Ram, 32 / 64Gb EMMC, Android 11, GMS, Wi-Fi, Bluetooth (Dual Display Support)

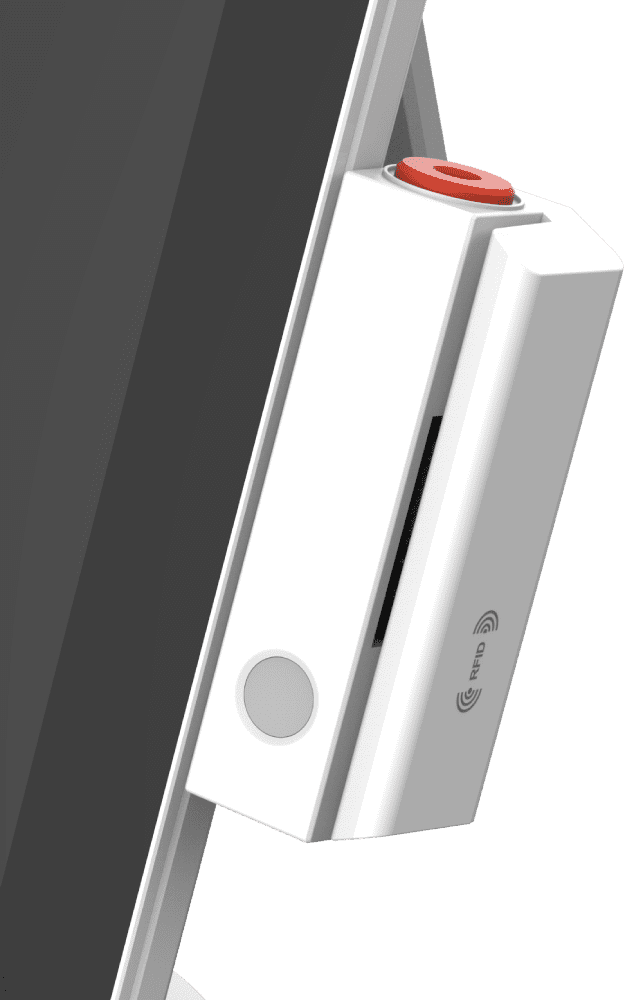

Combo Card Reader

( MSR, FP, RFID, NFC, ibutton)

Built-in 2D Barcode Scanner

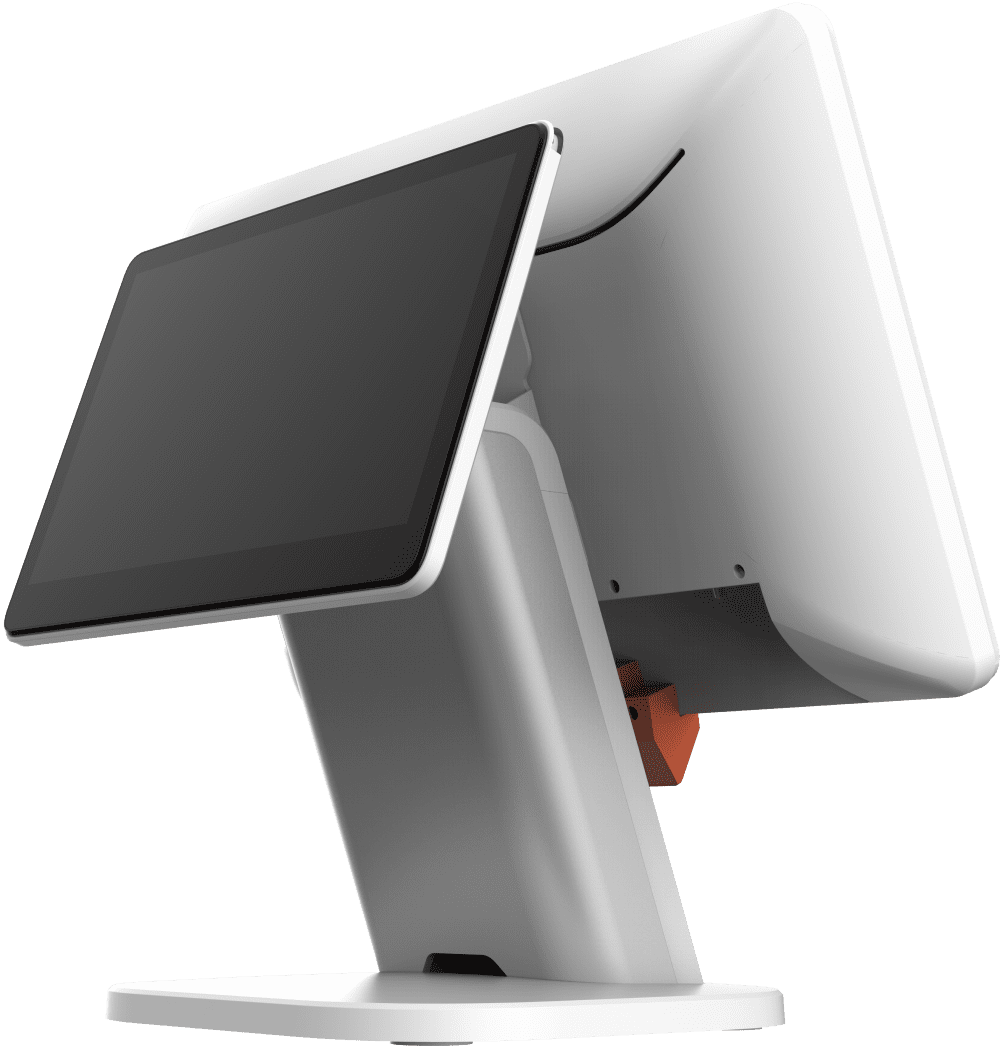

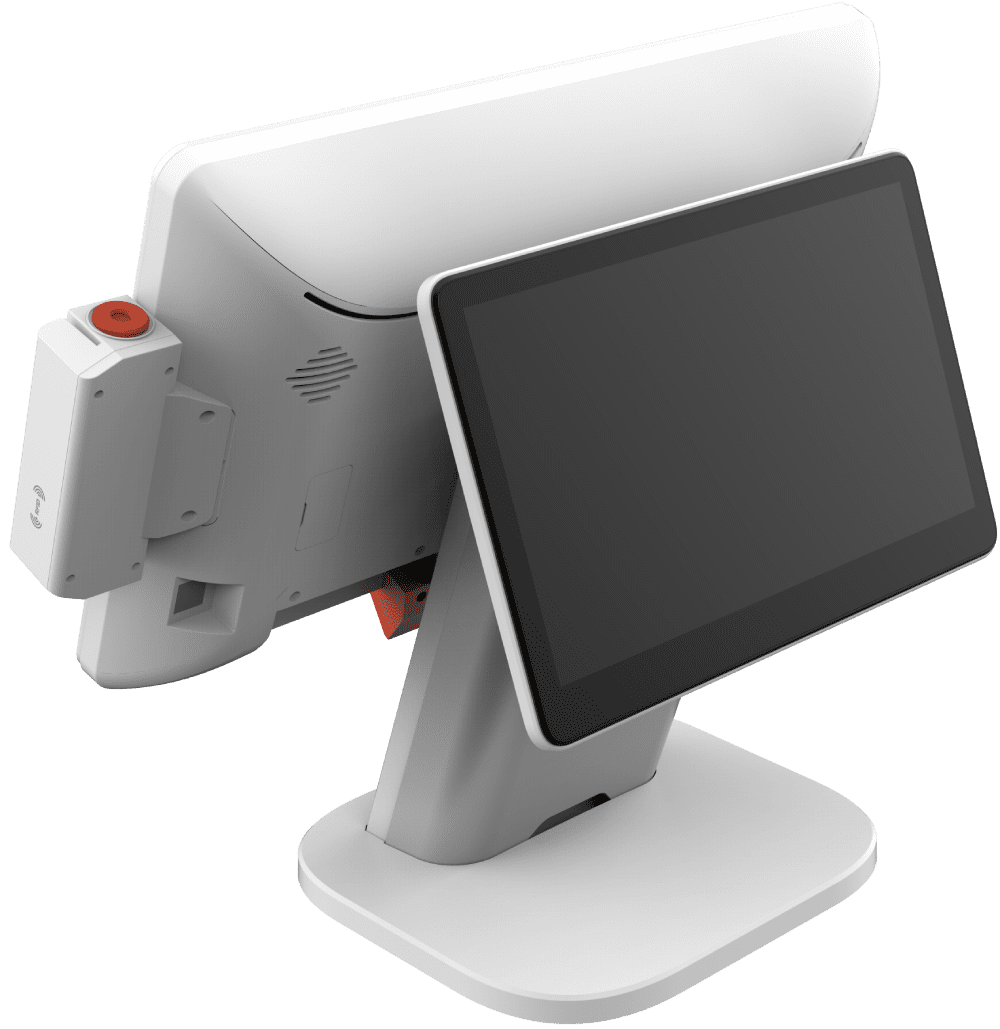

11.6" Second Display

(With / Without Touchscreen)

Specifications

Configuration

CPU

RK3566, Quad-core Cortex-A55, Mali-G52 EE – 2.0Ghz

RK3568, Quad-core Cortex-A55, Mali-G52 EE– 2.0Ghz



Ram

4Gb Ram

4Gb Ram



EMMC/SSD

32Gb EMMC

32Gb EMMC

Screen

Screen Size

15.6”

15.6”



Interface

EDP

EDP



Resolution

1366*768

1366*768



Brightness

220-250nits

220-250nits

Touch screen

Touch Panel

Projected Capacitive

Projected Capacitive

OS

Android

Android 11/13

Android 11/13

Interfaces

RS232

1

1



USB

4

4



TF Card

1

1



Micro USB

1

1



HDMI

NA

1



Audio

1

1



LAN

1

1



RJ11 Cash

Drawer

1

1



Speakers

1

1

Adapter

Power Adapter

12V, 5A

12V, 5A



Color

Black / White

Black / White



GW

6.8kg

6.8kg



Box Dimension

51*33.5*46cm

51*33.5*46cm
