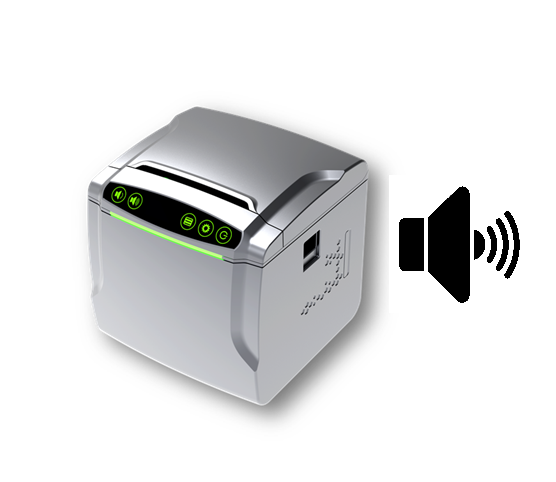

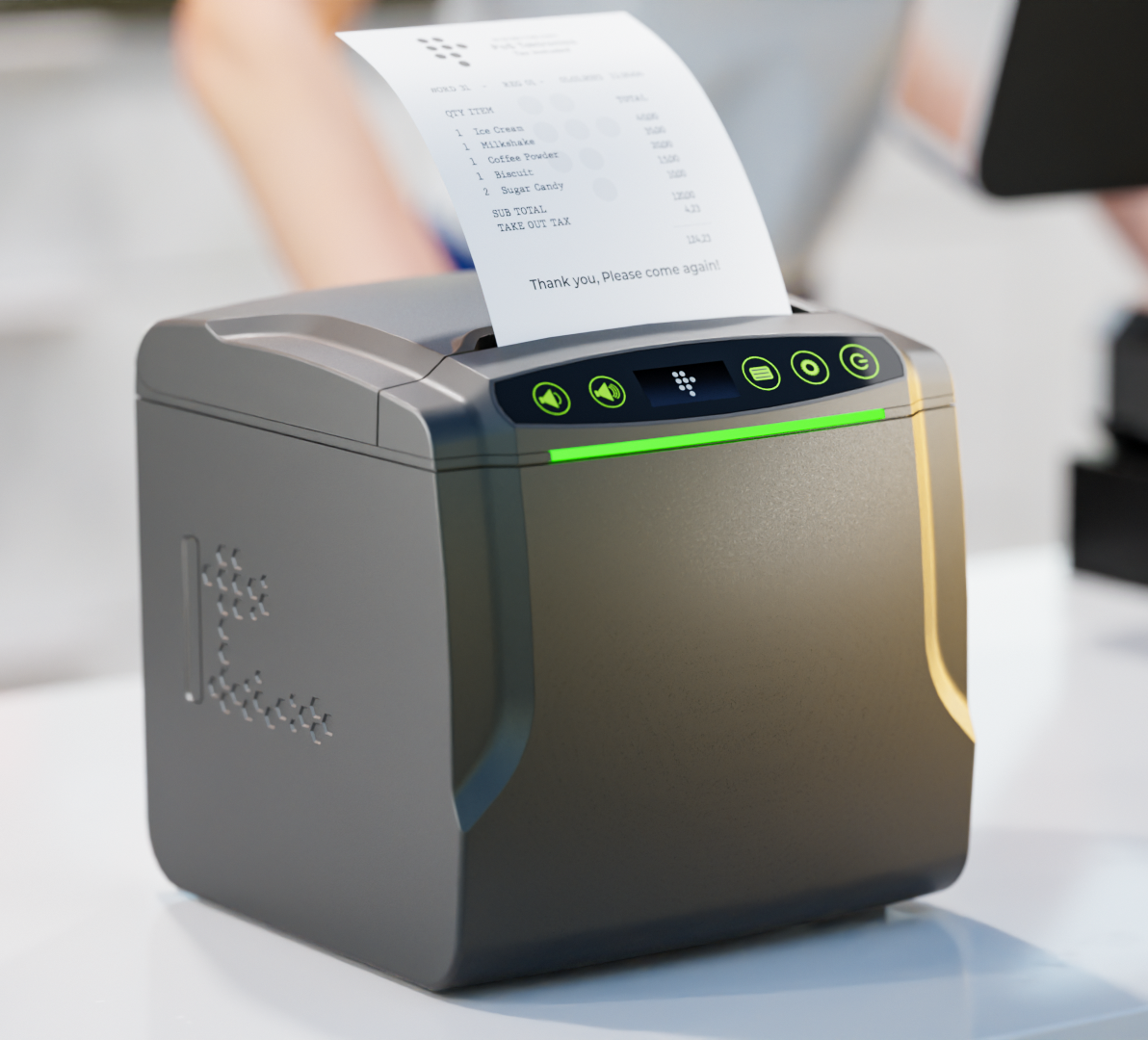

The Voice Function in 1080 ensures that operator is well informed about receipt / label being printed, paper roll over, paper jam and cover open function. This voice function works in conjuction with the LED Light in the Front.The LED light also turns red if there is a print error.

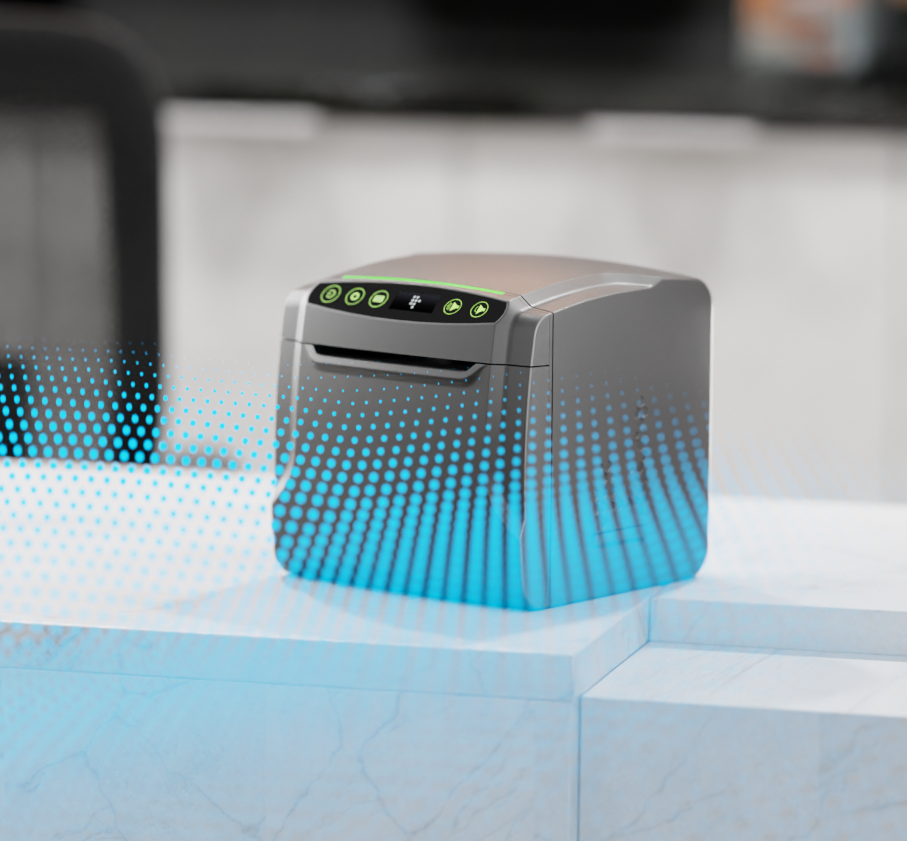

The 1080 has a unique function of detecting Human body and its motion . It detects and delivers message that is being downloaded to the printer. This message
can be any voice message that shop owners wants to deliver as an announcement.

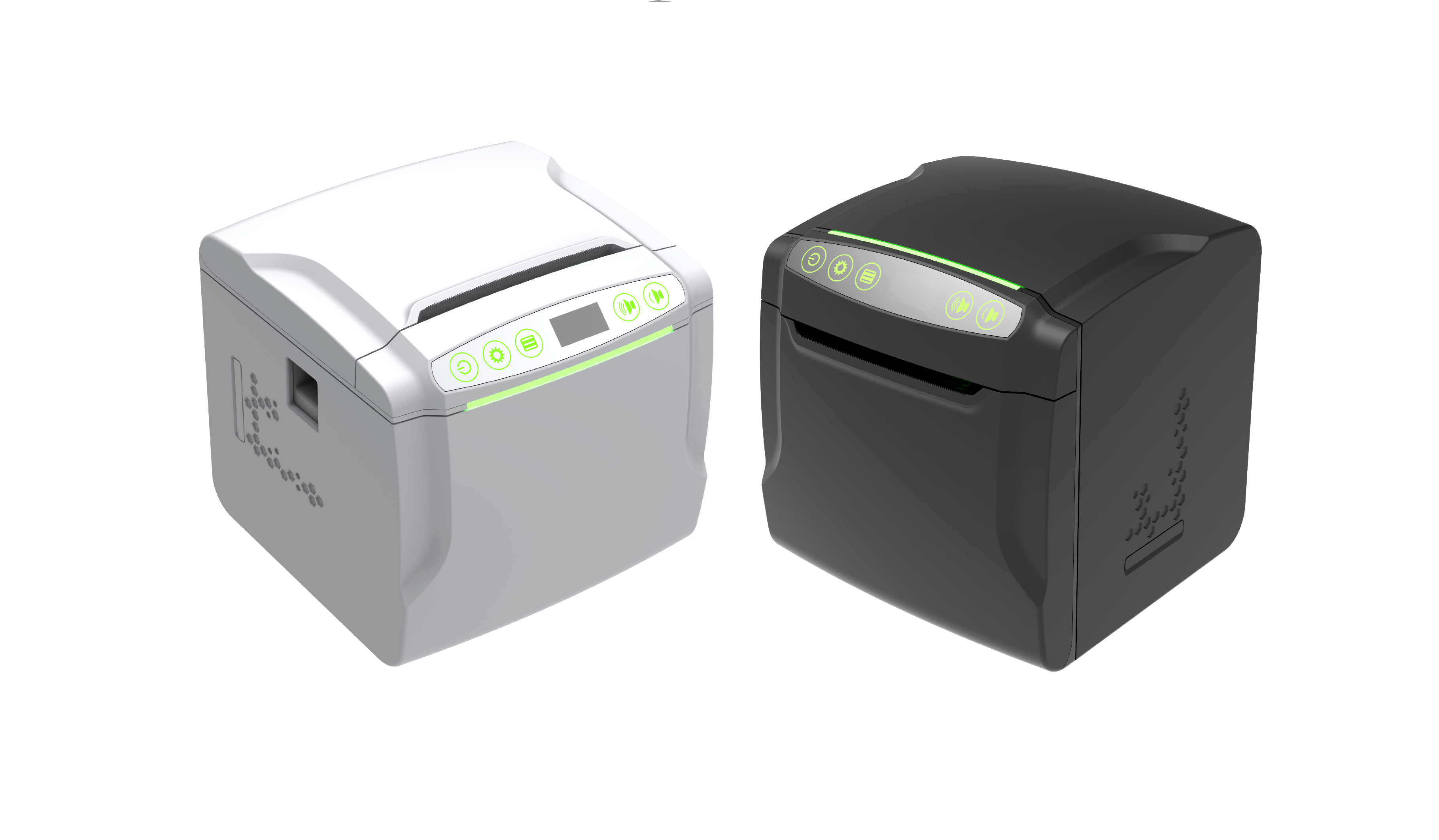

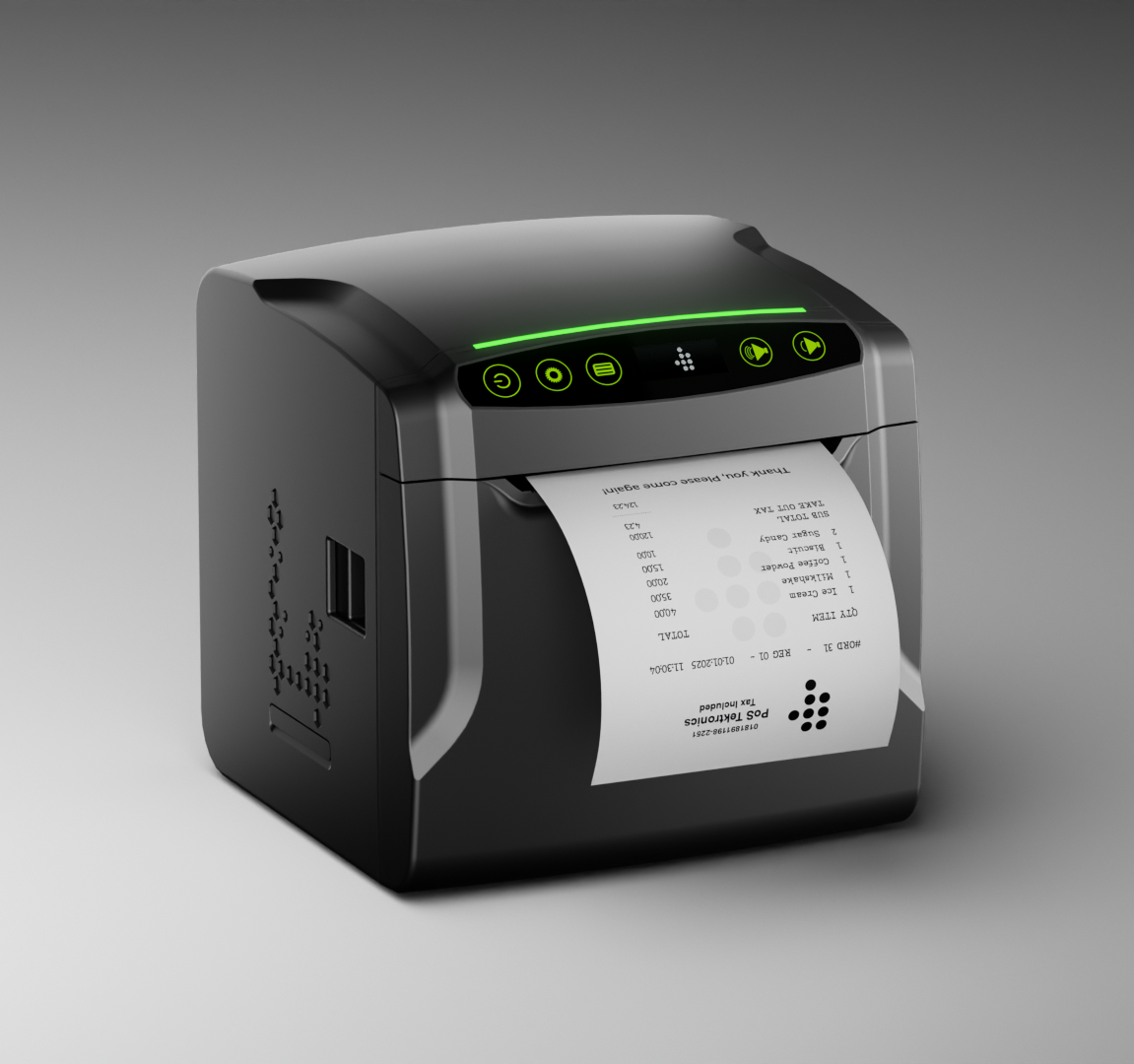

Top & Front Paper Exit
Paper & Label Printing
Multiple Paper Size : 80mm & 58mm, 300mm/sec
Label Size : 1” ~ 3” Direct Therma, 150mm/secl

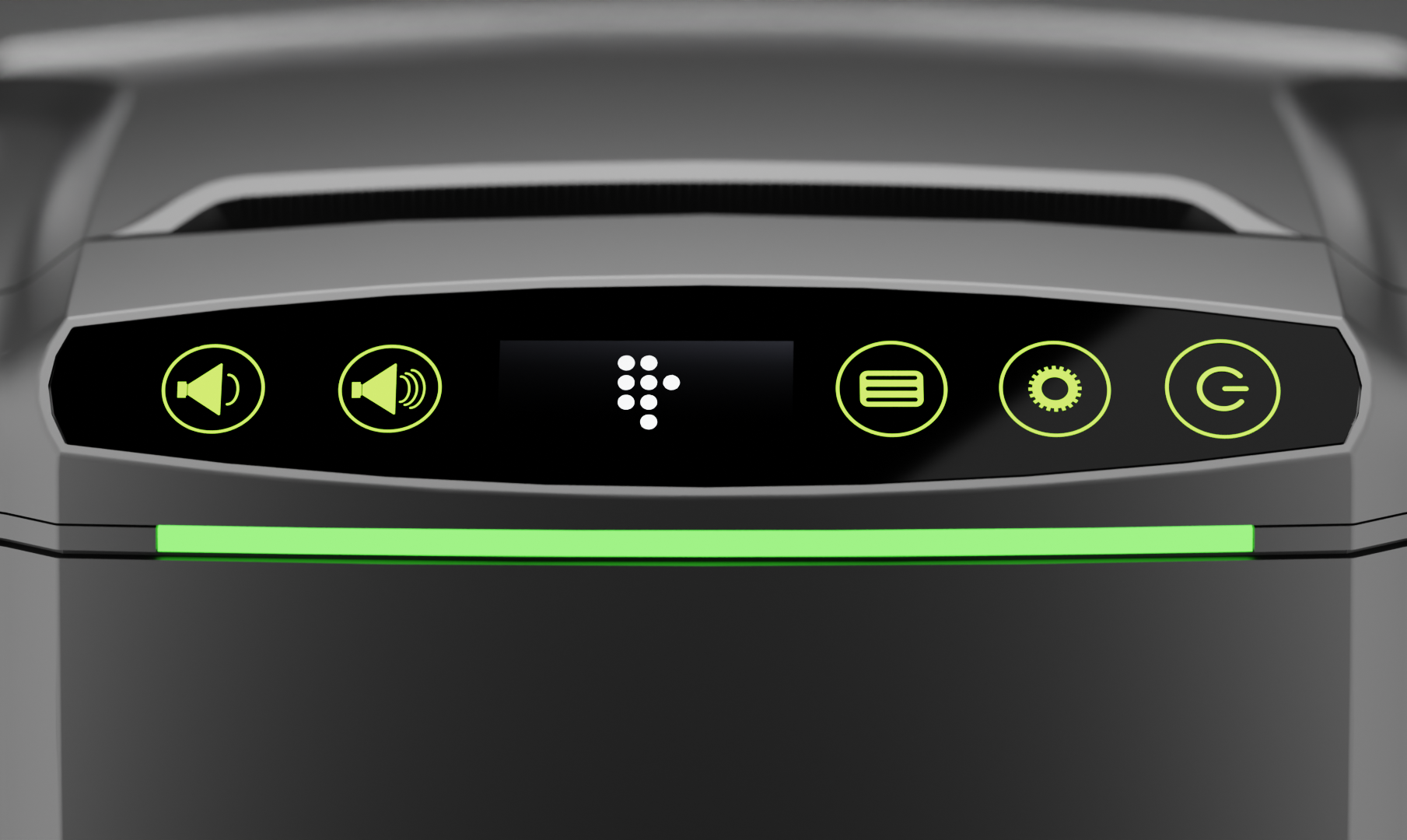

1.8” OLED Display
The 1" OLED Display supports all functions such as Paper size, Font Size, Language, Density, Character set, Test Print, Print Direction, Volume Control, Code Page including Logo Download from the Display.

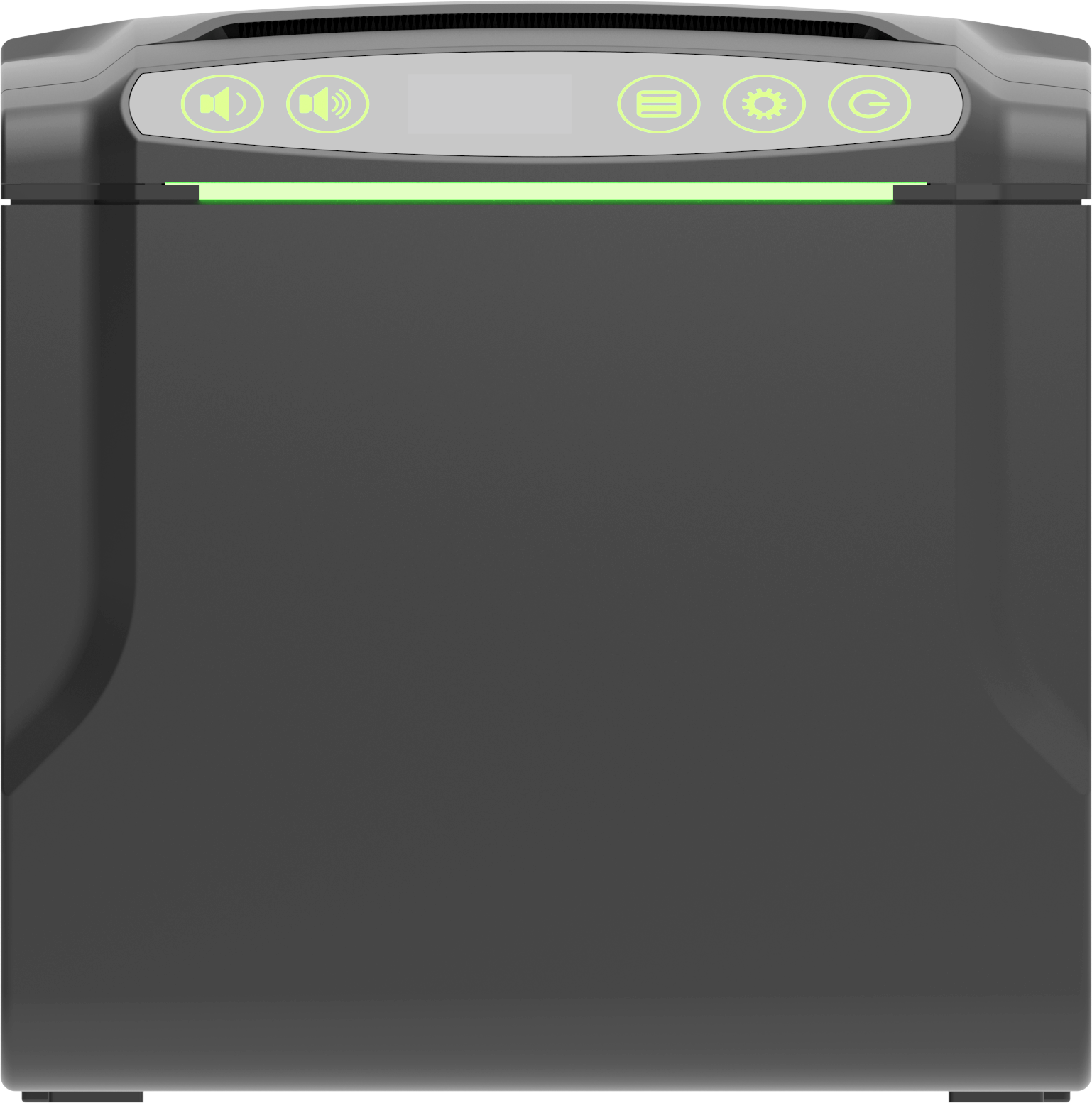

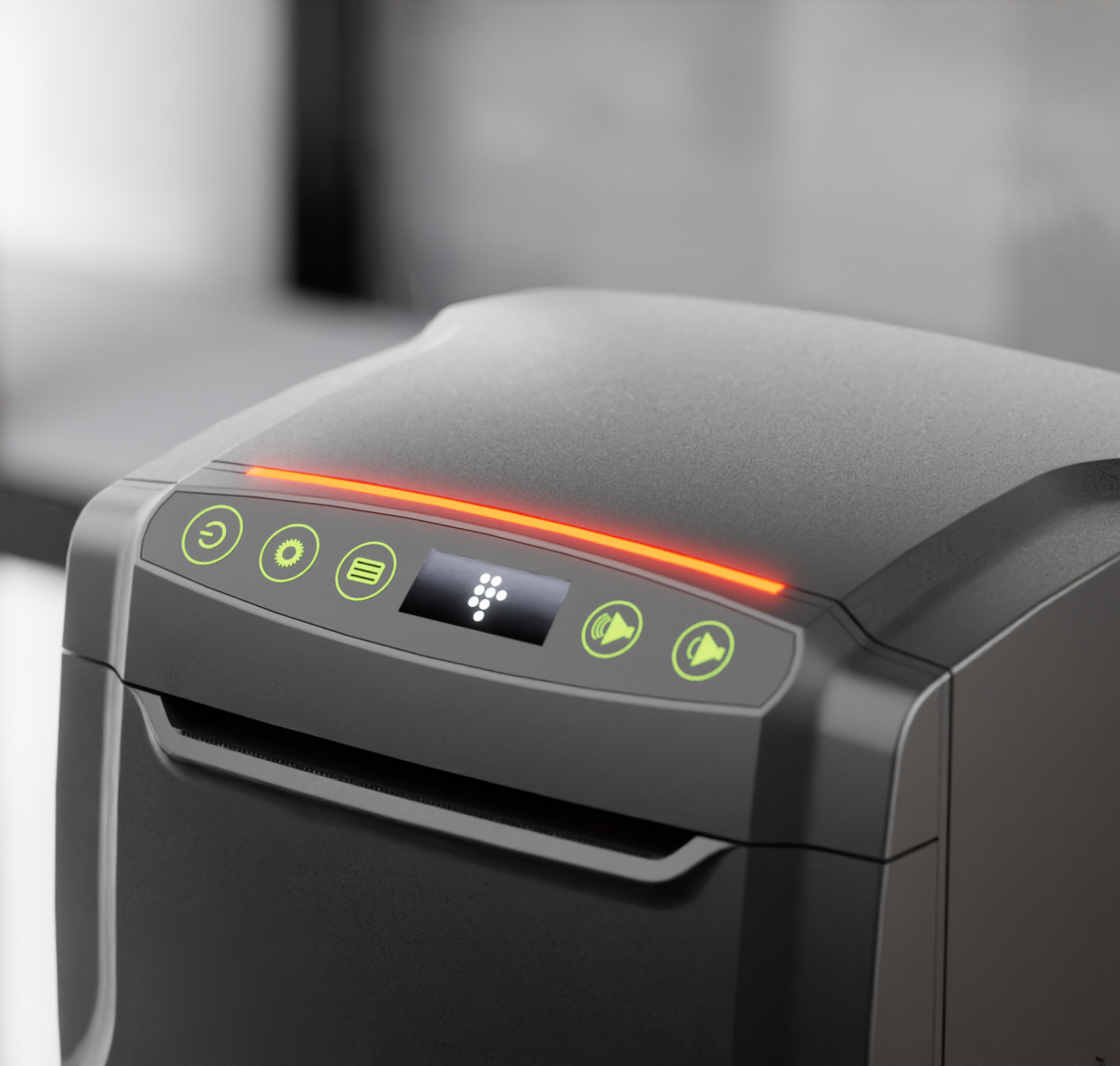

LED Light Function
|
Printing Method |
Thermal Line |
|
Resolution |
8dots/mm, 576dots/line |
|
Effective Printing Width |
72mm |
|
Printing Speed |
300mm/sec - Receipt 150mm/sec- Label |
|
Character Set |
ASCII, GB18030(Chinese),BIG5,Codepage |
|
Self-defined Character |
Yes |
|
Print Font |
Font A: 12 x24 |
|
Barcode |
1D: UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF25, CODEBAR, CODE93, CODE128 |
|
Graphic |
Support bitmap downloading |
|
Driver |
Windows XP/win7/Win Vista/Win8/Win10 |
|
Paper End Sensor |
Yes |
|
BlackMark Sensor |
Yes |
|

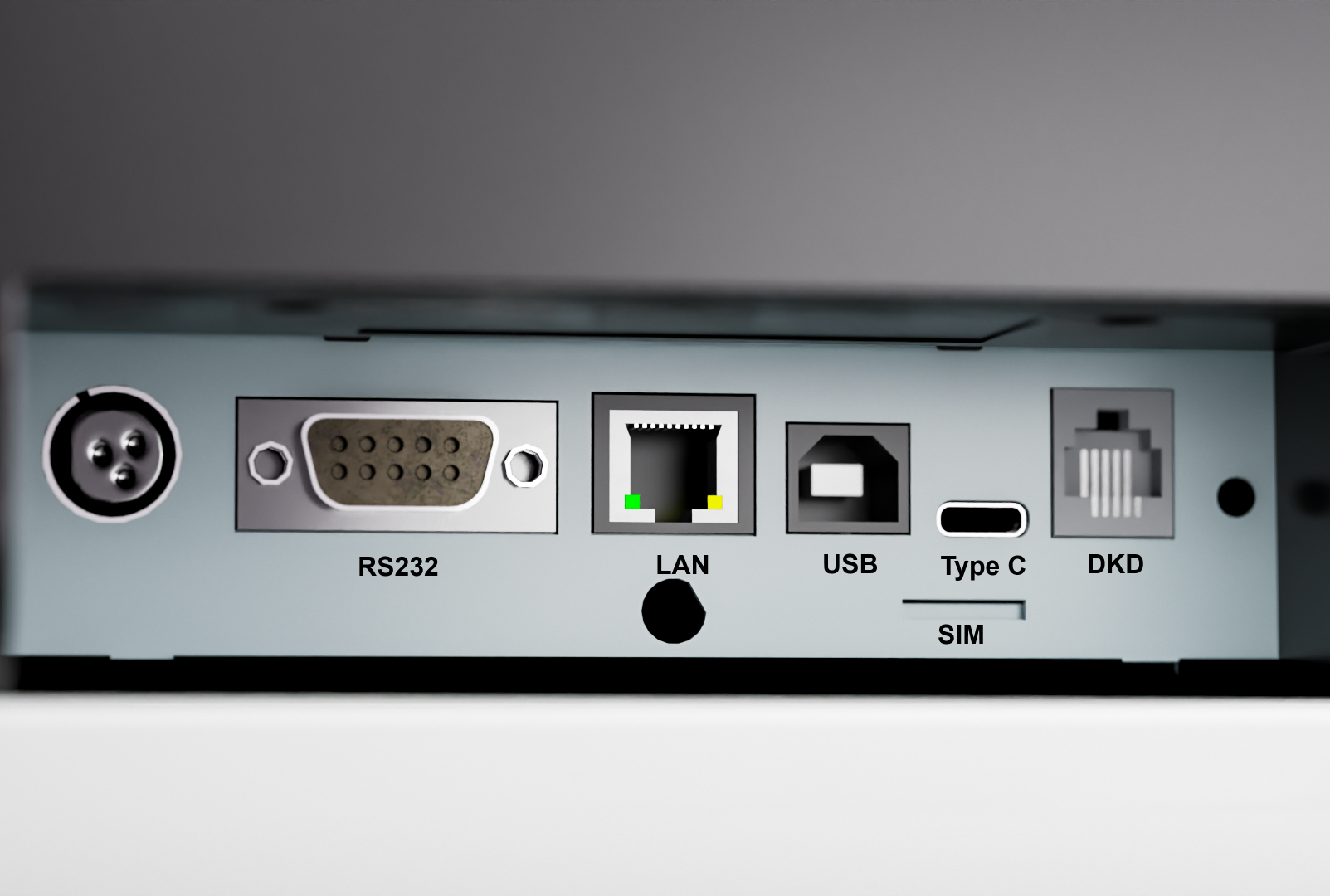

Interface |
USB+LAN+RS232,USB+LAN+RS232+Voice+AI |
|
Cash drawer control |
DC24V,1A, 6PIN RJ-11Socket |
|
Power Supply (Adapter) |
AC100 ~240V ± 10%(include) DC 24V, 2.4A |
|
TPH |
150KM, ROHM |
|
Auto Cutter |
1,500,000 cuts |
|
Paper Type |
Thermal paper |
|
Paper Width |
79.5± 0.5mm |
|
Paper Thickness |
0.06 to 0.08mm |
|
Paper Roll Diameter |
Max. 82mm |
|
Auto Cutter |
Partial Cut |
|
Operating Temp/Humidity |
0-50°C/10%-80% |
|
Storage Temp/Humidity |
-20-60°C / 10%-90% |
