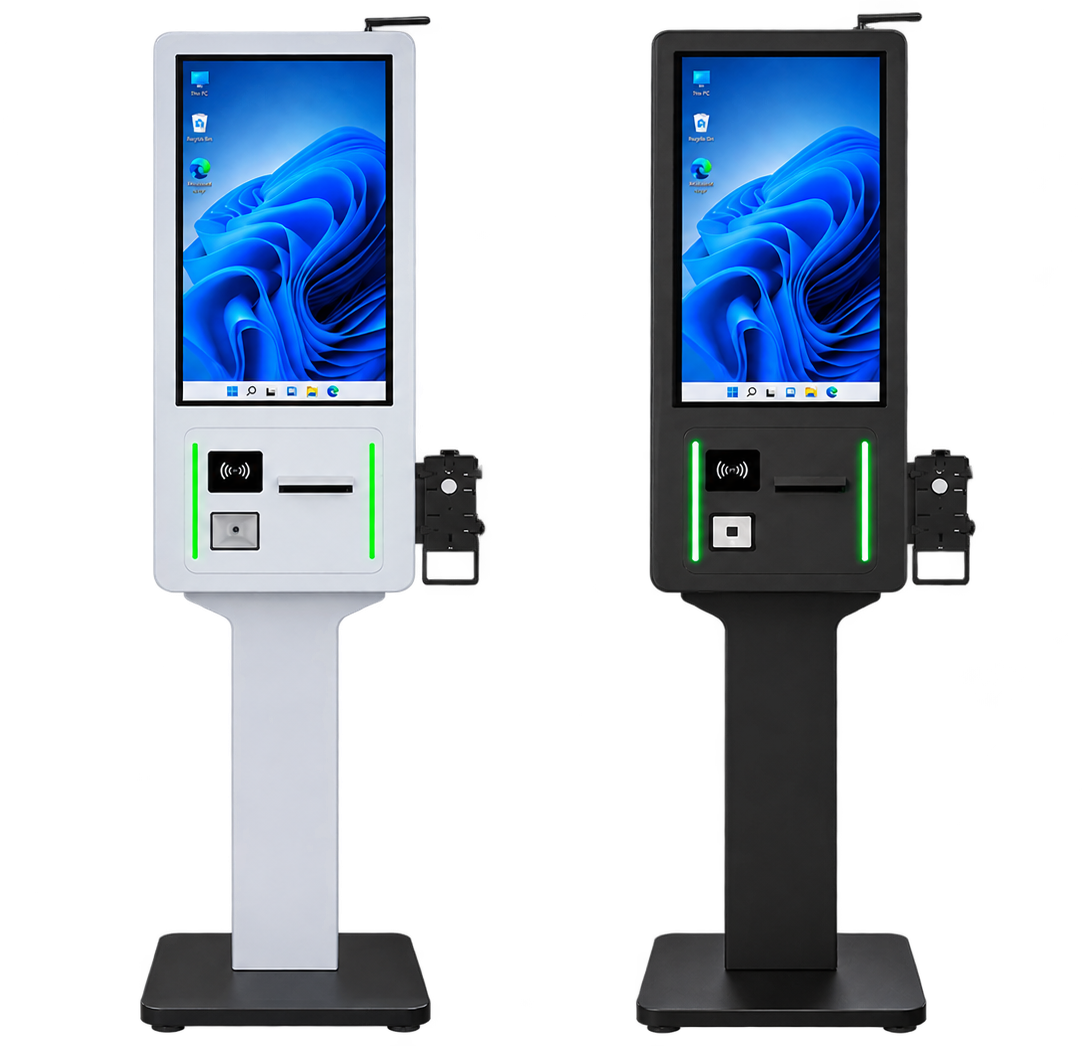

K1008 - 24"

Processor

Intel® Core® Alder Lake-N Processor - N95 up to 3.60GHz, Quad Core CPU

Intel® CoreTM Alder Lake-P Processor i3-1215U 1.20GHz

SDM450: Eight-core 64-bit ARM Cortex-A53 CPU1.8GHz (MSM8953 frequency 2.0GHz)

Memory

8Gb DDR4 - 3200Mhz

8Gb DDR4 - 3200Mhz

4GB LPDDR3

Storage

128Gb M2 SSD (Optional 256Gb)

128Gb M2 SSD (Optional 256Gb)

64Gb Emmc (Optional 64Gb)

Operation System

Windows 10 IoT Enterprise, Linux

Windows 10 IoT Enterprise, Linux

Android 11

Screen Size

24" LCD TFT (LED Backlit), 350nits, IP64 Front

Resolution

1080 x 1920

Screen Position

Vertical

Touch Panel

PCAP, Multi-touch

Speaker

2W speaker

WiFi

2.4G, 5.0G

2.4G, 5.0G

2.4G, 5.0G

Bluetooth

Optional

Optional

BT 4.2

Adaptor

DC Power Input

DC Power Input

DC Power Input

Interfaces

USB

4

4

4

Ethernet

1

1

1

RJ11

-

-

1

Audio

1

1

1

HDMI

1

1

1

Network Support

-

-

2G/3G/4G LTE

COM

1

1

1

Environment

Operation Temperature

5~40°C

Storage Temperature

-20°C to +60°C

Operation Humidity

15 to 85% without condensation

Storage Humidity

15 to 85% without condensation

Peripherals

Bar Code Scanner

2D/1D, 640×480，120FPS, Motion Tolerance : 100cm/s, ≥4mil

NFC

Read - Write , IEC 14443 TypeA， IEC 14443 TypeB

Printer

1080 Thermal POS Printer, USB+LAN+RS232, 300mm/sec, ESC/POS Complaint

EMV Terminal Bracket

Included

Camera

As per customer requirement

LED Light

Green , Dual LED Light

K1008 Table Top Dimensions

Width

369.5mm

Depth

206.4mm

Height

894.39mm

With Base Plate

400mm

Floor Mount Stand Dimensions

Base Plate

420W x 400D

Stand Width

200mm

Stand Depth

115mm

Stand Height

156.5mm

Overall Kiosk Dimensions

No of units / Box

1pc/box

Box Dimensions

53*75*171cm

Box Weight

44kgs
