Configuration

CPU

RK3566, Quad-core Cortex-A55,

Mali-G52 EE – 2.0Ghz

Fan-less J4125 CPU – 2Ghz, Quad

Core, Fan-less

Fan-less N100 CPU – 2Ghz, Quad

Core, Fan-less

Ram

4Gb Ram

8Gb Ram

8Gb Ram

EMMC/SSD

32Gb EMMC

128Gb SSD

128Gb M.2 SSD

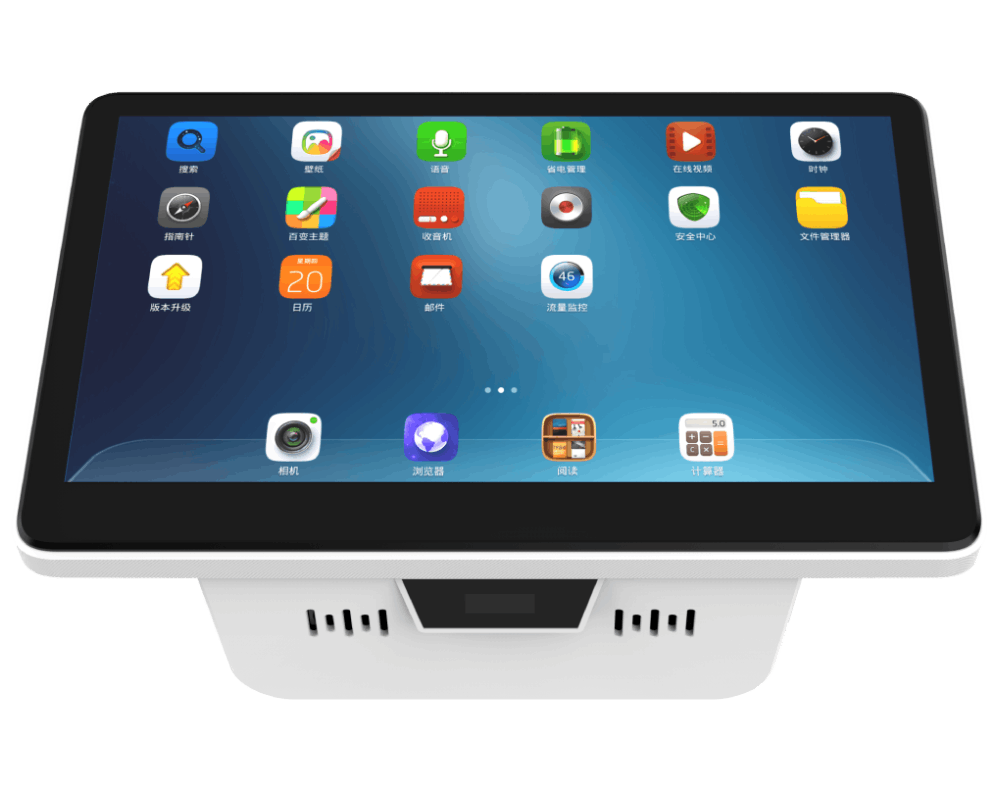

Screen

Screen Size

11.6”

  11.6”

  11.6”

Interface

EDP

EDP

EDP

Resolution

1366*768

1366*768

1366*768

Brightness

220-250nits

220-250nits

220-250nits

Touch screen

Touch Panel

Projected Capacitive

Projected Capacitive

Projected Capacitive

OS

Android

Android 11

Windows 10 Trial

Windows 10 Trial

Interfaces

RS232

1

1

1

USB

4

4

4

TF Card

-

1

1

Micro USB

1

1

1

HDMI

Optional

1

1

Audio

1

1

1

LAN

1

1

1

RJ11 Cash

Drawer

1

1

1

Speakers

1

1

1

Adapter

Power Adapter

24V 4.16A

24V 4.16A

24V 4.16A

Color

Black / White

Black / White

Black / White

GW

15kg (4pcs in 1 ctn)

15kg (4pcs in 1 ctn)

15kg (4pcs in 1 ctn)

Outer Box Dimension

53*43*43cm

53*43*43cm

53*43*43cm

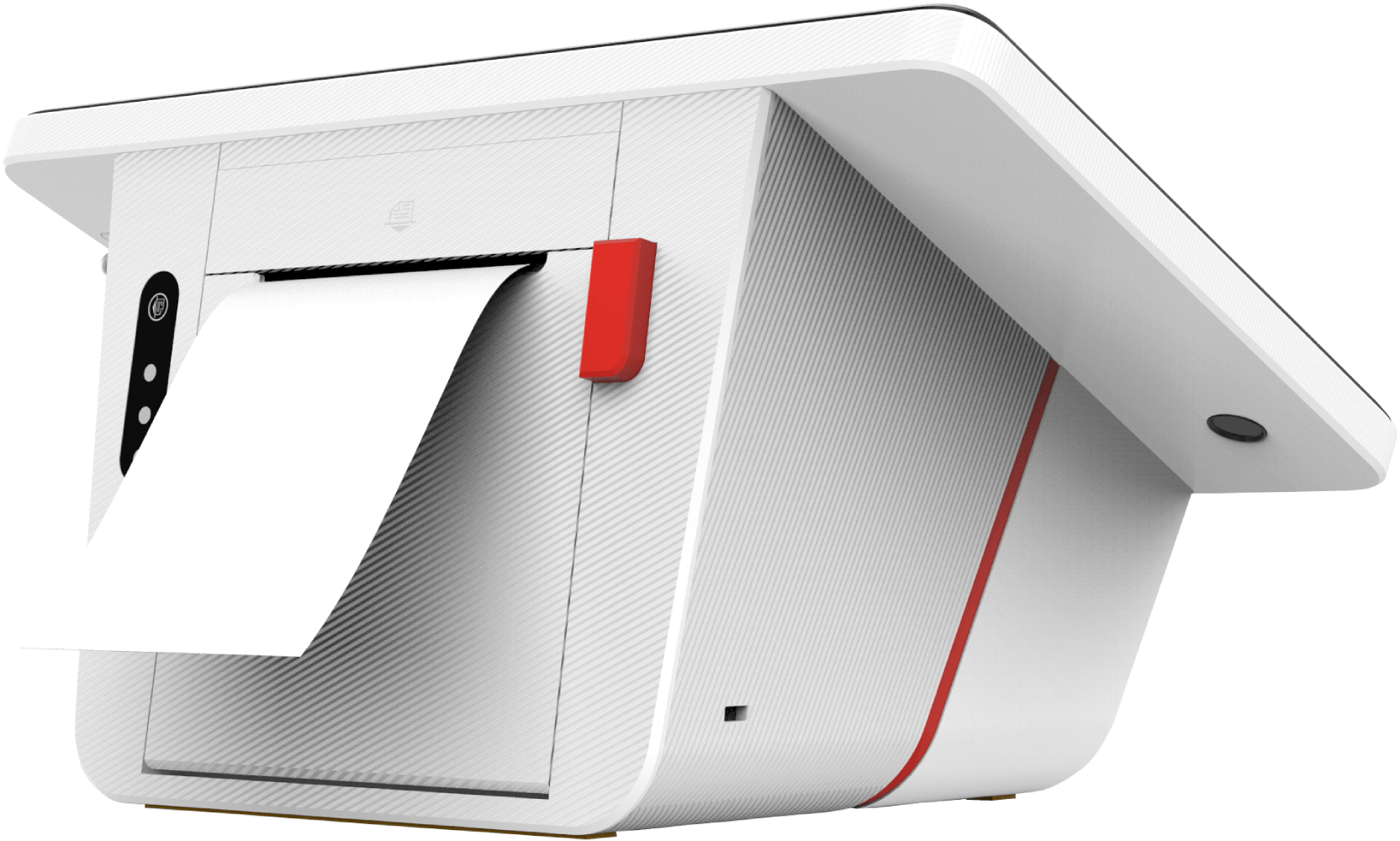

Printer

Speed

170mm/sec

Interface

USB (Opt RS232 )

Cutter

Full Cut

Paper Size

80mm, 58mm
